PRODUCT

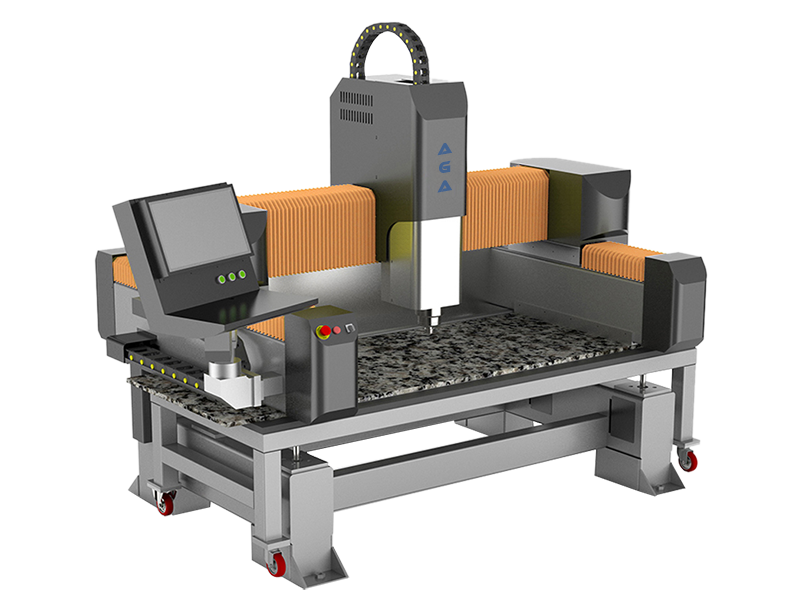

Sink Cutout Machine CNC Router

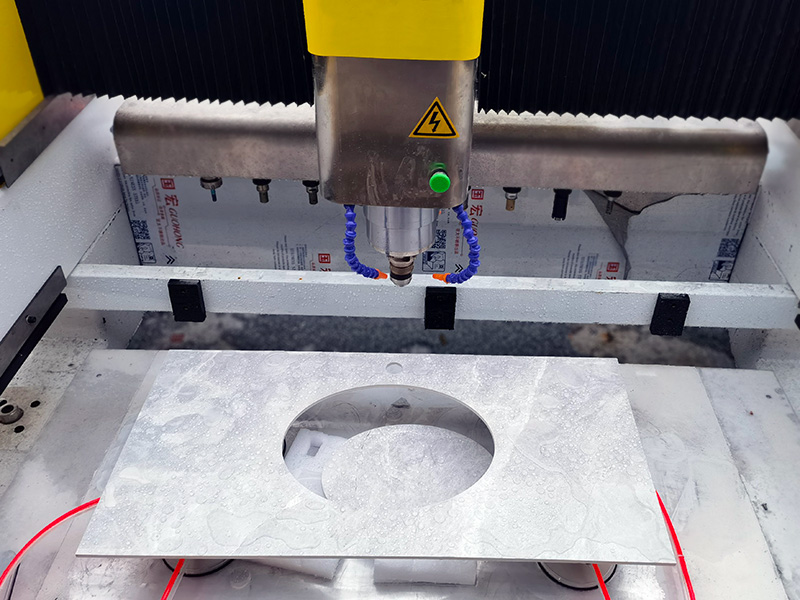

Sink hole cutout machine for granite, marble, quartz, ceramic, etc.
Applicable for fabrications of kitchen countertops, vanity and Islands.

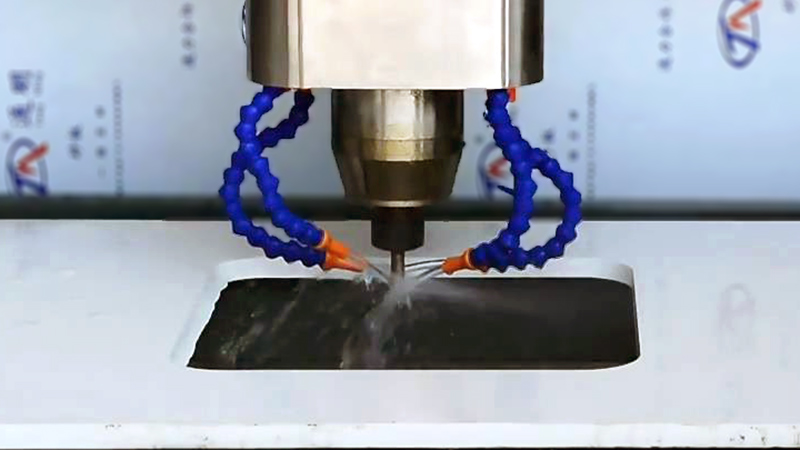

CNC router with automatic cutting, profiling and polishing.
Open structure for free length of slab processing.
Automatic fixing the slab by suction cups.
Easy software compatible with input of DXF file CAD.
Automatic programming and tool changeover for edge polishing.
SPECIFICATION
Working length X axis 1400mm 55.1"
Working width Y axis 900mm 35.4"
Free Slab Length & Width
Max. slab thick 50mm 2"

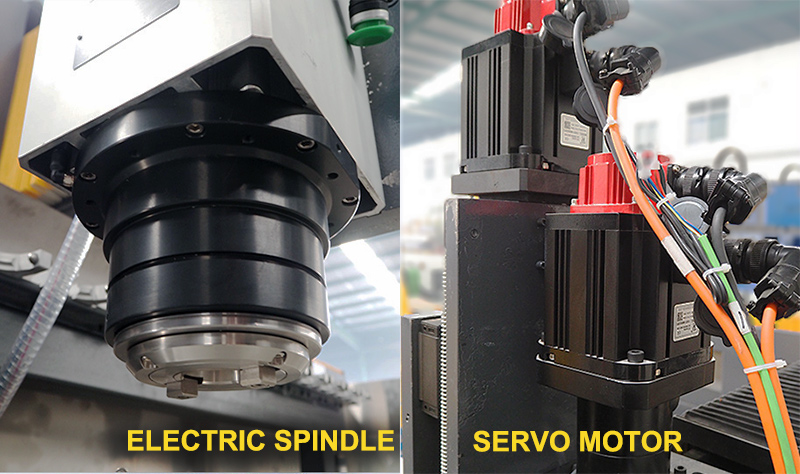

Spindle 11Kw 15 HP
Max. Spindle RPM 15000
Automatic tool changeover 11 stations
Software compatible with DXF AutoCAD
Program with standard G Code
Tools holders BT40 11 pcs
Total power 13.6Kw 18.5 HP
Cooling water 20L/min pressure 2 bar
Compressed air 150L/min pressure 5-10 bar
Total weight 1800 Kg 4000 lbs
Overall size 2.8 x 2.2 x 2.4m 8'L x 7W' x 7'H
