Marble Block Cutter

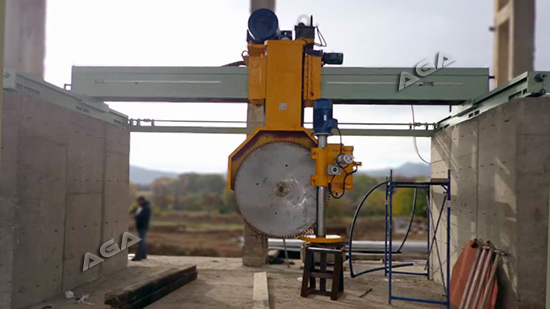

Marble block cutting machine two way
Marble block cutter with horizontal blade to saw the block into slabs suitable for marble, limestone and sandstone.

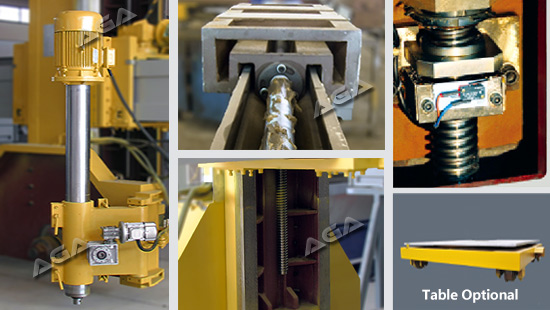

The machine is made of cast iron and works automatically by computer program and also capable of manual operation.

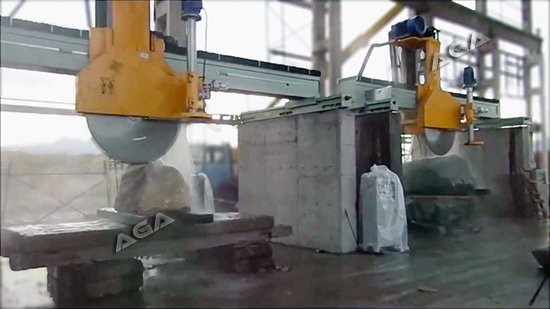

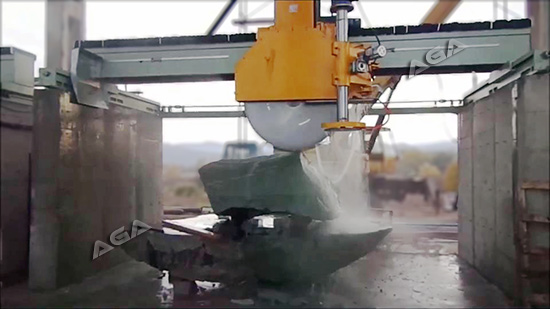

The cutter head goes left and right to saw the block into slabs and when one slab is finished the bridge beam moves backward to start the next slab cutting automatically.

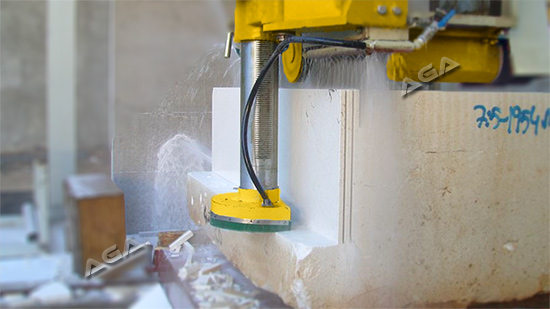

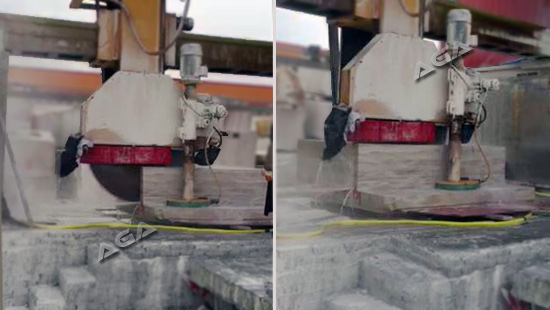

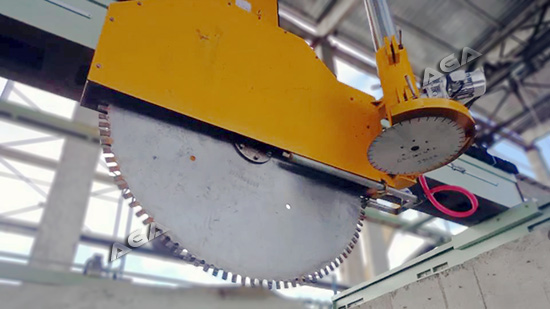

Also both the vertical blade and horizontal blade are working so it is easier to make the cut-through and get off the slab.

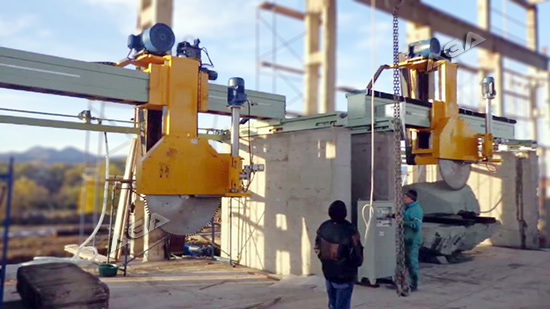

The bridge beam is very strong and also locked when cutting that provides excellent balance when working.

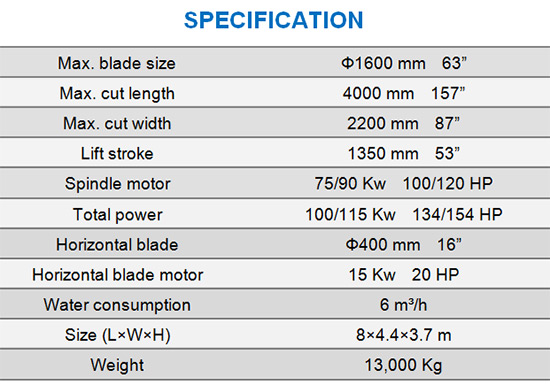

SPECIFICATION
Max. blade size Φ1600 mm 63”
Max. cut length 4000 mm 157”
Max. cut width 2200 mm 87”
Lift stroke 1350 mm 53”
Spindle motor 75 / 90 Kw 100 / 122 HP
Total power 100 / 115 Kw 134 / 156 HP
Horizontal blade Φ400 mm 16”
Horizontal blade motor 15 Kw 20 HP
Water consumption 6 m³/h
Overall size (L×W×H) 8×4.4×3.7 m
Weight 13,000 Kg
