Marble Block Saw Machine
Block sawing machine with horizontable cutter for marble travertine limestone

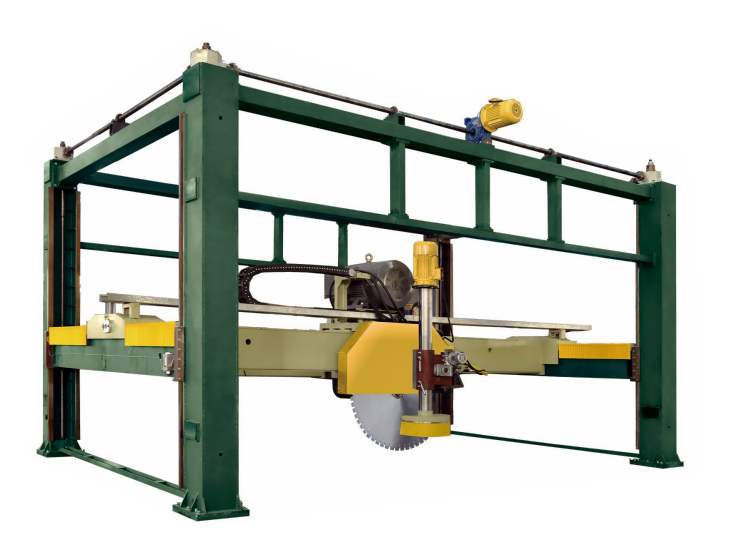

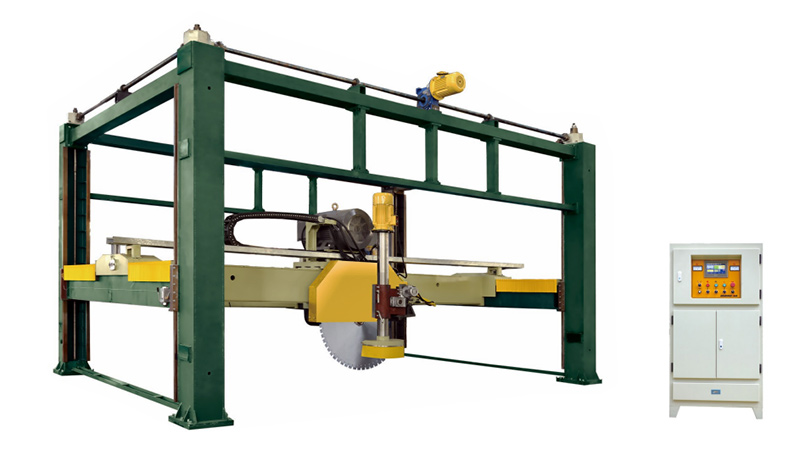

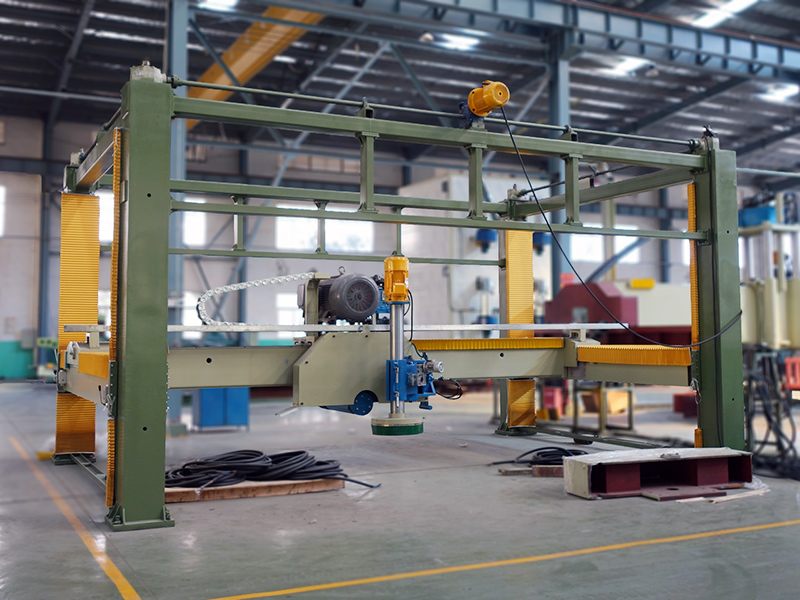

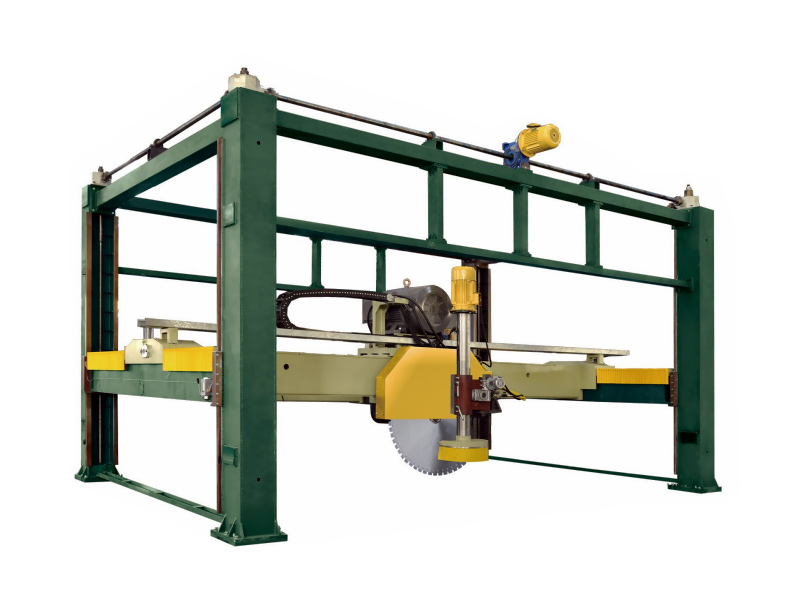

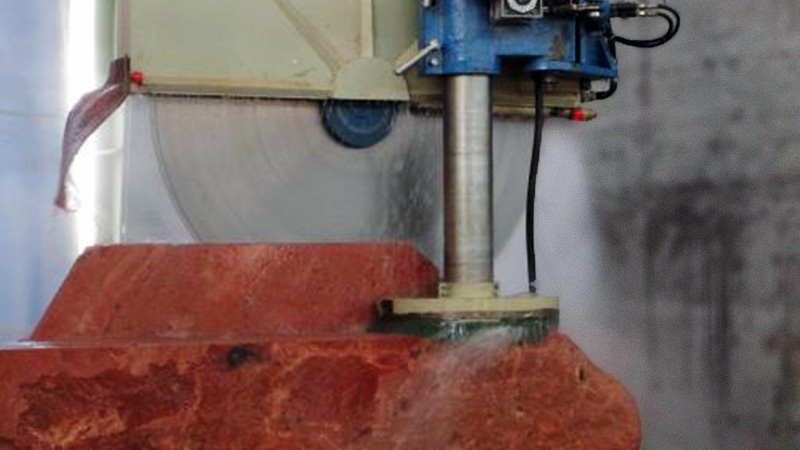

The machine consists of four vertical columns, a single crossbeam and dual side beams. The cutting system integrates one vertical saw blade and one horizontal saw blade.
This equipment serves as a primary processing solution for sawing stone blocks into medium and small slabs, including marble, travertine, sandstone, and other natural stones.
ADVANTAGES

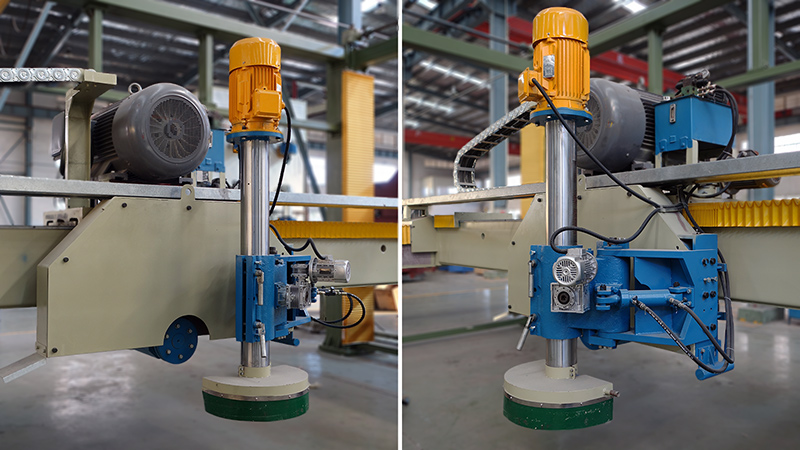

- Cutting system integrates a D1600mm vertical saw blade and a D600mm horizontal blade.
- Maximum cut block size 3.1×2×2 m (L / W / H) and maximum output slab height 630 mm.
- Applicable for continuous multi-layer cutting without material repositioning.
- Main structure made of very strong cast iron for stability and long lifetime.
- Strong power motor for speed and efficiency.
- Automatic layered cutting of stone blocks through cycled processing.
- Digital input and fully automatic programmed cutting.

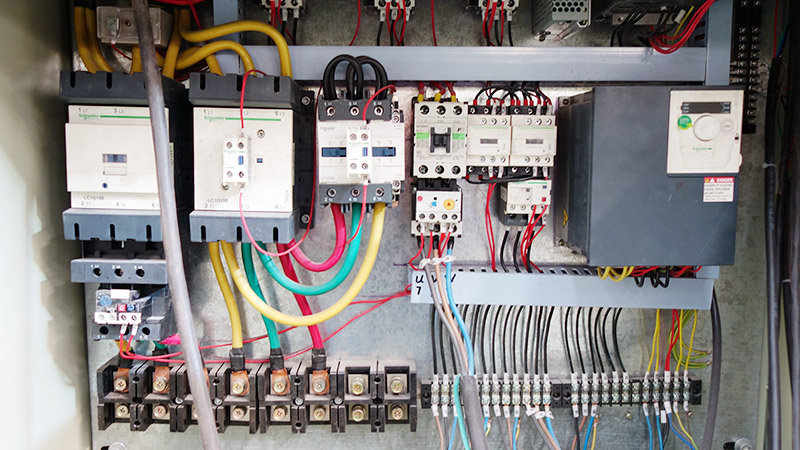

- Variable cutting feed speed via frequency drive on the motor & reducer.

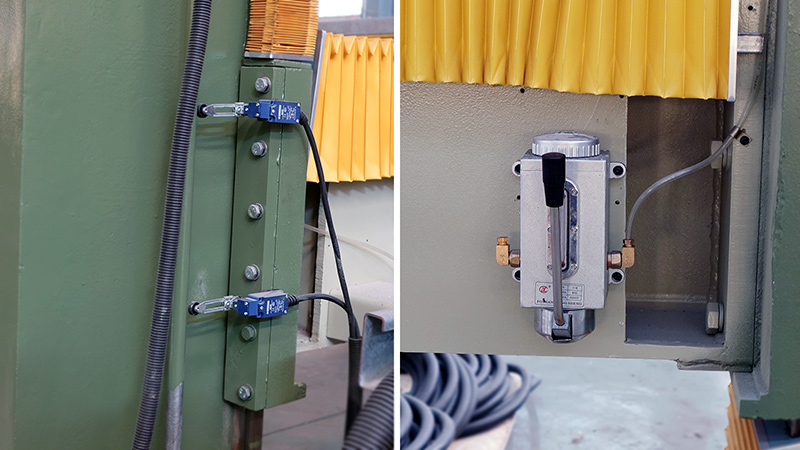

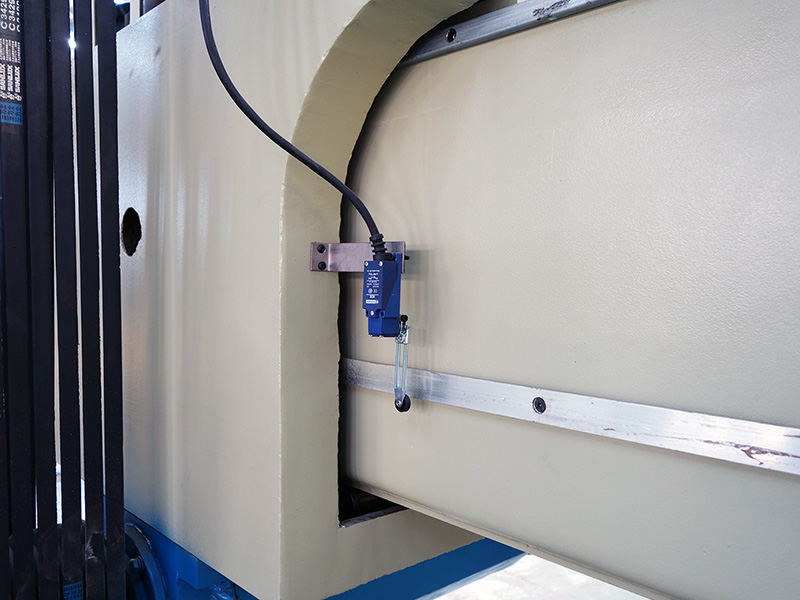

- Advanced sensors and automatic control for precise cutting thickness
- User-friendly HMI for easy operation.
- Trolley and 6 meter long rails included.
SPECIFICATION
Blade diameter Ø1600 mm

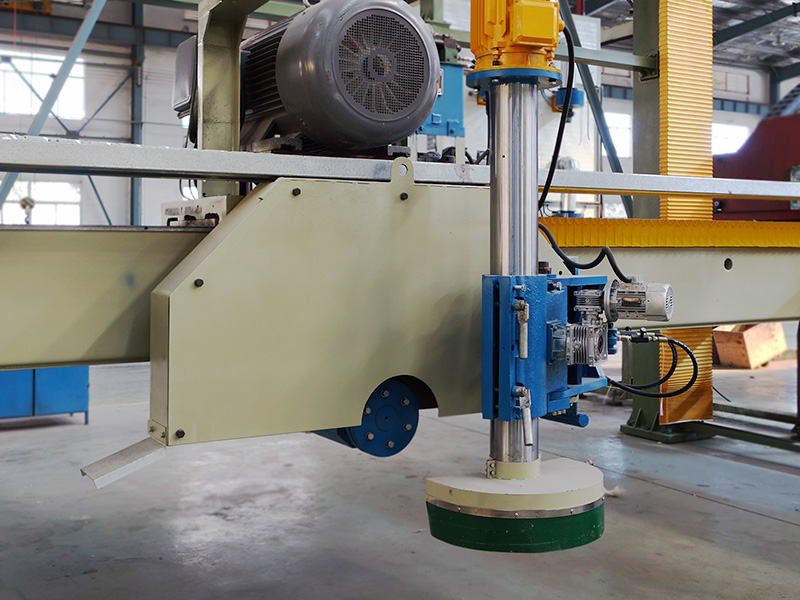

Horizontal blade diameter Ø 600 mm
Max cut length 3100 mm
Max cut width 2000 mm
Max cut height 2000 mm
Max output slab height 630 mm
Horizontal cutter motor 15 Kw

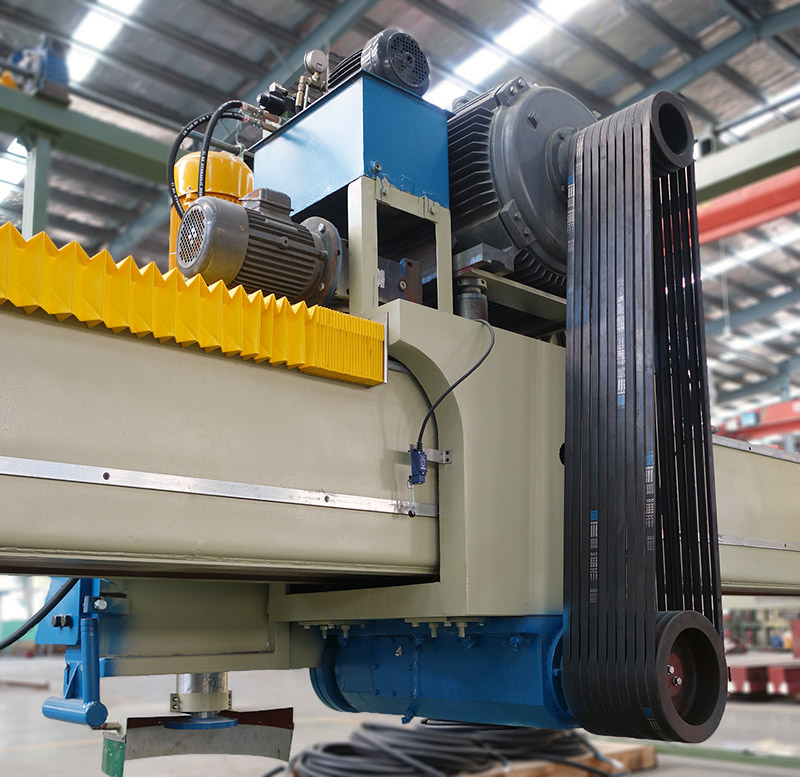

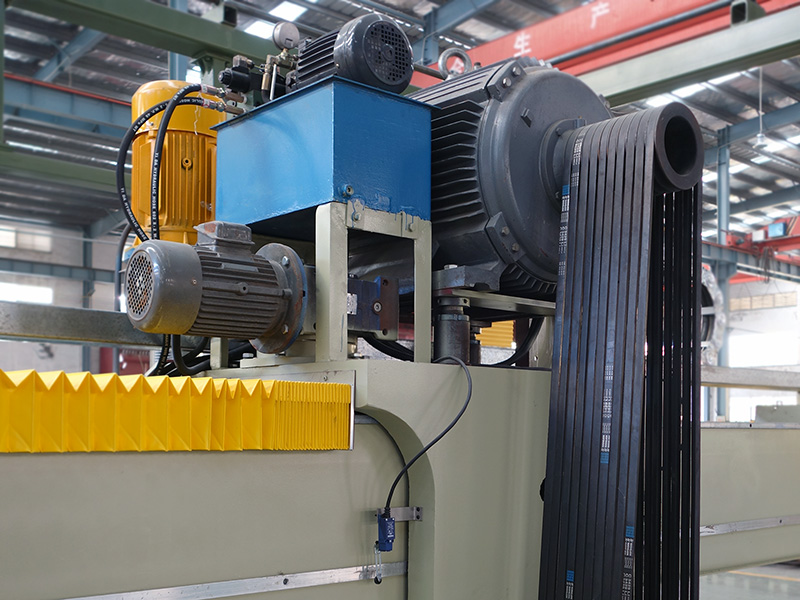

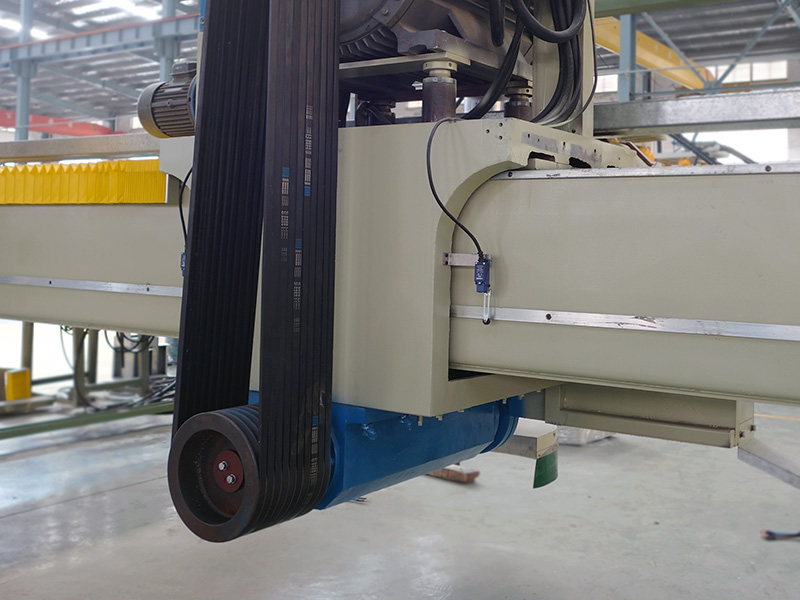

Main motor 75 / 90 Kw 100 / 122 HP
Trolley table size 2000 × 2000 mm
Trolley rail length 6 m
Overall dimension 8.6 × 6.3 × 5 m
Approx. weight 19000 Kg
